SIZE RANGE:
2-24″ (50-600mm)
TEMPERATURE RANGE:
Acrylonitrile-Butadiene (NBR) -20 to 180°F (-29 to 82°C)
Ethylene Propylene and a Diene (EPDM) -20 to 250°F (-29 to 121°C)
PRESSURE RATING:
Ductile Iron Nylon Coated (DINY) or 316 Stainless Steel (S2) Discs:
2-12” (50-300mm) = 175 psi (1210 kPa);
14-24” (350-600mm) = 150 psi (1030 kPa)
Aluminum Bronze (ALB) Discs = 150 psi (1030 kPa)
BODY STYLES:

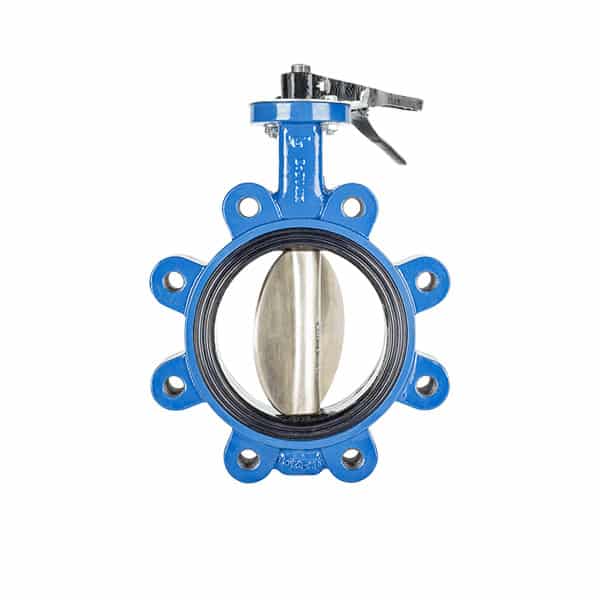

Lugged 2-24″ (50-600mm)
BODY MATERIAL:
Ductile Iron
ACTUATOR TYPE:
Lever, handwheel, chainwheel, PowerRac double-acting and spring-return cylinder, Compak double-acting cylinder, G-Series cylinder
