Hilton Bonneted & Bonnetless Knife Gate Valves (H-200/H-200-B)

Hilton standard design Knife Gate Valves provide performance, economy and rugged construction for a broad range of water and industrial applications including Water, Wastewater, Paper, Mining, Power and Hydro Dams.

The use of readily available plate steel and alloy materials allows faster manufacturing turn-around as compared to cast valves. In larger sizes, fabricated construction expands knife gate manufacturing capability beyond the practical range of cast valves. Special application configurations can be added to standard fabricated valves at lower cost, and materials of construction can be varied within the design adding further versatility.

A leader in fabricated valve technology, Hilton offers H-200/H-200-B Standard Knife Gate Valves in sizes 2″ to 96″ with and without bonnets. Bonneted valves provide positive media containment, control of fugitive emissions and adds operating safety by fully enclosing the moving gate.

Hilton Bonneted Knife Gate Valves (h 200 B)

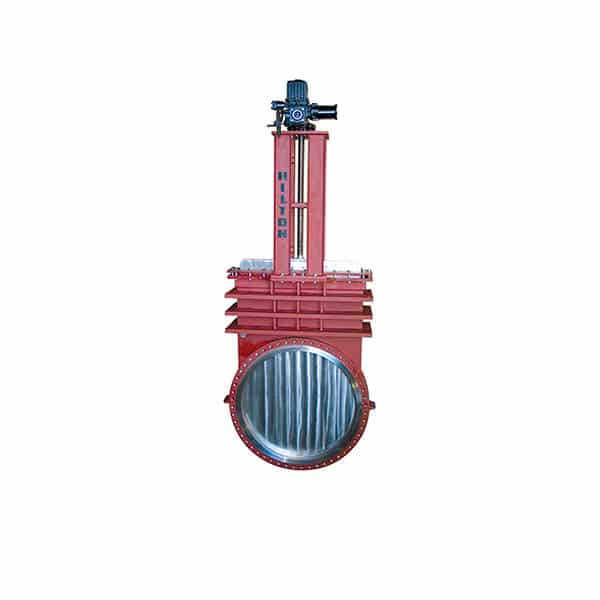

Hilton Bonnetless Knife Gate Valves (h 200)
Hilton Bonneted Knife Gate Valves (h 200 B)
Hilton Bonnetless Knife Gate Valves (h 200)
Snapshot
Open Close

SIZE RANGE:
Through 144″ (to 3700mm)

TEMPERATURE RANGE:
-40°F to 2000°F

PRESSURE RATING:
25-300 psi (170-2070 kPa)

SEATING:
Metal or resilient with options for removable seat, inflatable seal or grease seal

MATERIALS:
Solid alloy or alloy wetted parts construction. Available in any weldable alloy including stainless steel, Hastelloy, Inconel, Monel or Titanium. Optional abrasion and corrosion resistant designs with hard facing available.

ACTUATOR TYPE:
Handwheel, chainwheel, bevel gear, cylinder, electric motor

Bulletins
Open Close
Hilton Bonneted Knife Gate Valves 65.00-1

Hilton Bonneted Knife Gate Valves 65.00-1

Download Bulletin
Hilton Fabricated and Custom Valves 10.00-11

Hilton Fabricated and Custom Valves 10.00-11

Download Bulletin
Applications
Open Close
Hilton Bonneted Knife Gate & Wedge Gate Valves for Flare Systems 65.01-2

Hilton Bonneted Knife Gate & Wedge Gate Valves for Flare Systems 65.01-2

Download Solution
Cooling Water Intake Valves Succeed in Microbiologically Influenced Corrosion Environment Application Solution 229

Cooling Water Intake Valves Succeed in Microbiologically Influenced Corrosion Environment Application Solution 229

Download Solution
Hilton Compact Designed Bonneted Knife Gate Valve Application Solution 207

Hilton Compact Designed Bonneted Knife Gate Valve Application Solution 207

Download Solution
Hilton Cooling Water Isolation Valves at NASA Rocket Test Facility Application Solution 210

Hilton Cooling Water Isolation Valves at NASA Rocket Test Facility Application Solution 210

Download Solution
Hilton Knife Gate Valve Solves Challenges in Wastewater Filter Bypass System Application Solution 235

Hilton Knife Gate Valve Solves Challenges in Wastewater Filter Bypass System Application Solution 235

Download Solution
Selection & Sizing
Open Close

Material Selection Guide

Material Selection Guide

DeZURIK’s Material Selection Guide program makes it quick and easy to determine which metals or elastomers are suggested as suitable for application in a specific corrosive media. Click the icon above to learn more or use the program.

Specification
Open Close
H-200-B-T304 Bonneted Metal Seated Knife Gate Valve Suggested Specification 65.01-1

H-200-B-T304 Bonneted Metal Seated Knife Gate Valve Suggested Specification 65.01-1

Download Resource
Videos
Open Close
DeZURIK Knife Gate Valves Overview

DeZURIK Knife Gate Valves Overview

View on YouTube
CAD Drawings
Open Close
Valves Pages Bottom 2

We look forward to helping you select a valve for your application.
